Decra Tiles

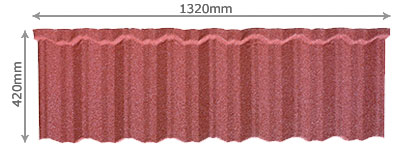

Thickness of steel substrate mm 0.39
Thickness of Steel Total Coating mm 0.43 - 0.45
Tile Total Thickness mm ± 2.0
Tile Dimension mm 1320 x 420
Cover length mm 1265
Cover width/Batten Spacing mm 368
Weight of tile kg ±3.0
Weight/area kg/m2 ±6.60
Coverage of tile m2 0.46
Tiles per m2 tiles/m2 ±2.20
Minimum truss pitch Degree 12°

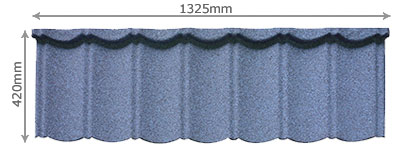

Thickness of steel substrate mm 0.39
Thickness of Steel Total Coating mm 0.43 - 0.45
Tile Total Thickness mm ± 2.0
Tile Dimension mm 1325 x 420
Cover length mm 1257
Cover width/Batten Spacing mm 368
Weight of tile kg ±3.0
Weight/area kg/m2 ±6.60
Coverage of tile m2 0.46
Tiles per m2 tiles/m2 ±2.20
Minimum truss pitch Degree 12°

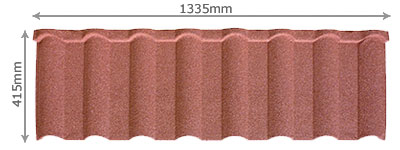

Thickness of steel substrate mm 0.39
Thickness of Steel Total Coating mm 0.43 - 0.45
Tile Total Thickness mm ± 2.0
Tile Dimension mm 1335 x 415
Cover length mm 1215
Cover width/Batten Spacing mm 368
Weight of tile kg ±3.0
Weight/area kg/m2 ±6.60
Coverage of tile m2 0.46
Tiles per m2 tiles/m2 ±2.20
Minimum truss pitch Degree 12°
Thickness of steel substrate mm 0.39
Thickness of Steel Total Coating mm 0.43 - 0.45
Tile Total Thickness mm ± 2.0
Tile Dimension mm 1320 x 415
Cover length mm 1250
Cover width/Batten Spacing mm 368
Weight of tile kg ±3.0
Weight/area kg/m2 ±6.60
Coverage of tile m2 0.46
Tiles per m2 tiles/m2 ±2.20
Minimum truss pitch Degree 15°

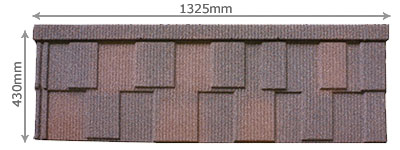

Thickness of steel substrate mm 0.39
Thickness of Steel Total Coating mm 0.43 - 0.45
Tile Total Thickness mm ± 2.0
Tile Dimension mm 1325 x 430
Cover length mm 1250
Cover width/Batten Spacing mm 368
Weight of tile kg ±3.0
Weight/area kg/m2 ±6.60
Coverage of tile m2 0.46
Tiles per m2 tiles/m2 ±2.20
Minimum truss pitch Degree 15°
